Product Description
ATACR 5-25x56 SFP Enhanced Riflescope - MIL-R WITH ZERO STOP
The ATACR 5-25x56 "Enhanced" Riflescope includes the Nightforce Hi-Speed adjustments with patented ZeroStop, and is available in .1 Mrad (12 Mils per revolution) or .25 MOA (30 MOA per revolution) increments. A capped windage adjustment helps prevent accidental adjustment in the field. The parallax adjustment is marked with approximate numbered distances and is coupled with DigIllum digital reticle illumination. The eyepiece features enhanced engraving, an integrated Power Throw Lever (PTL) and an XtremeSpeed thread for making a fast diopter adjustment.
The 34mm tube allows 120 MOA/34.9 Mils of elevation adjustment. Fully multi-coated ED glass results in light transmission values of over 90%, brilliant images and exceptional color contrast. A magnification range of 5x to 25x, and a wider field of view as a result of its unique optical prescription (17.96 feet at 5x) will cover virtually any situation a shooter could encounter.
Tenebraex Flip Covers are now included with ATACR riflescopes*.
(*Excluding models C445, C446, C526)
Nightforce Videos
ATACR, SFP overview ..... and ..... ZeroStop: What is it & How does it work
Click Here For ATACR Owners Manual
Click Here For MIL-R Reticle Manual
SpecificationsFocal Plane - Second
Magnification Range - 5-25x
Objective lens diameter - 56mm
Tube diameter - 34 mm/1.34 in
Internal adjustment range (MOA) - e: 120 MOA
- w: 60 MOA Click value - .250 MOA
.1 Mil-rad Calibrated Ranging Power - 25x
Parallax adjustment - 45 yd-∞
Exit pupil diameter - 5x: - 0.52 mm
25x: - 2.28 mm Eye relief - 90 mm/3.54 in
Field of view @100 yards/100 meters - 5x: - 17.96 ft
25x: - 4.92 ft
5x: - 5.47 m
25x: - 1.5 m Objective outer diameter - 65 mm
Eyepiece outer diameter - 44 mm
Overall length (inches/mm) - 14.3 in/363 mm
Weight (ounces/grams) - 39 oz/1108g
Mounting length (inches/mm) - 6.13 in/156 mm
Front/Rear Mounting Length - 2.10 in/2.24 in
PTL (Power Throw Lever) - Standard
Illumination - Digillum
Elevation Feature - Zero Stop
Reticle

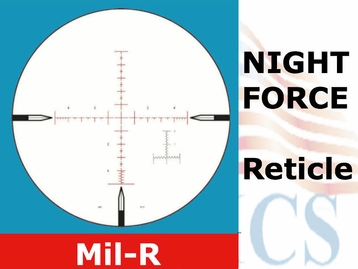

The Mil-R reticle allows precise ranging and accurate hold offs for effective first-shot placement and quick follow-up shots. This reticle features a floating center crosshair which is 1.0 Mil across, whole, half, .2 and .1 Mil-Radian graduations across the reticle, and a total of 15 Mil-Radian below center.
Throw Lever (PTL)
Instant magnification changes in a fraction of a second, even if you are wearing gloves.
The ATACR 5-25x56 "Enhanced" Riflescope includes the Nightforce Hi-Speed adjustments with patented ZeroStop, and is available in .1 Mrad (12 Mils per revolution) or .25 MOA (30 MOA per revolution) increments. A capped windage adjustment helps prevent accidental adjustment in the field. The parallax adjustment is marked with approximate numbered distances and is coupled with DigIllum digital reticle illumination. The eyepiece features enhanced engraving, an integrated Power Throw Lever (PTL) and an XtremeSpeed thread for making a fast diopter adjustment.
The 34mm tube allows 120 MOA/34.9 Mils of elevation adjustment. Fully multi-coated ED glass results in light transmission values of over 90%, brilliant images and exceptional color contrast. A magnification range of 5x to 25x, and a wider field of view as a result of its unique optical prescription (17.96 feet at 5x) will cover virtually any situation a shooter could encounter.
Tenebraex Flip Covers are now included with ATACR riflescopes*.
(*Excluding models C445, C446, C526)
Nightforce Videos
ATACR, SFP overview ..... and ..... ZeroStop: What is it & How does it work
Click Here For ATACR Owners Manual
Click Here For MIL-R Reticle Manual
Compare different devices:
|
|
Reticles |
|
Illumination |
|
| |
|
|
|
|
|
25x:2.28mm |
5x:5.47m /25x1.5m |
|
|
|
|
|
|
25x:2.28mm |
5x:5.47m /25x1.5m |
|
|
|
|
|
|
25x:2.28mm |
5x:5.47m /25x1.5m |
|
Specifications
- w: 60 MOA
.1 Mil-rad
25x: - 2.28 mm
25x: - 4.92 ft
5x: - 5.47 m
25x: - 1.5 m
Reticle
The Mil-R reticle allows precise ranging and accurate hold offs for effective first-shot placement and quick follow-up shots. This reticle features a floating center crosshair which is 1.0 Mil across, whole, half, .2 and .1 Mil-Radian graduations across the reticle, and a total of 15 Mil-Radian below center.
Throw Lever (PTL)
Instant magnification changes in a fraction of a second, even if you are wearing gloves.
