Holographic Hybrid Sight III 518.2 with G33.STS MAGNIFIER


Description
The HHS III is extremely versatile. It offers extremely quick close quarter targeting with the magnifier switched away but can instantly transition to a magnified optic effective out to longer distances. Powered by two AA Alkaline or Lithium batteries, the HHS III can quickly adapt to many shooting situations. The HHS III system offers wide-field optical performance with superior light transmission for visibility in a variety of lighting conditions.


Specifications

Length/Width/Height - 9.5" x 2.3" x 3.3"(234 x 59 x 83.9 mm)

Weight - 25 oz (708.8 g)

Water Resistant - Submersible to 10 ft. (3 m) depth

Mount - MIL-STD-1913 rail 1" Weaver

Brightness - 20 brightness settings

Power Source - Two 1.5 V AA batteries. Supports lithium, alkaline, or rechargeable

Battery Life -

Lithium: 1,000 continuous hours at nominal setting 12 and room temp.

Alkaline: 600 continuous hours at nominal setting 12 and room temp.

Reticle
Ring with 2 Dots**
The two-dot reticle pattern can be easily distinguished with or without magnification. It provides four usable aiming points:

7 yards (close range)

50 yards (medium range)

200 yards (medium range)

500 yards (long range)

For ordering, this pattern is designated in a model number as -2.


**Using only 2 dots, this EOTech reticle pattern provides 4 usable aiming points. EOTech offers a 2 dot reticle in the HHS lll. this simple reticle is calibrated to the specific trajectory of the M4 carbine. Although only two dots are provided, this unique pattern provides (4) usable aiming points. The 2 dot reticle can also, be distinguished with or without magnification. In addition, this reticle pattern can work on other weapon platforms and provide (4) aiming points: close, medium and long range.

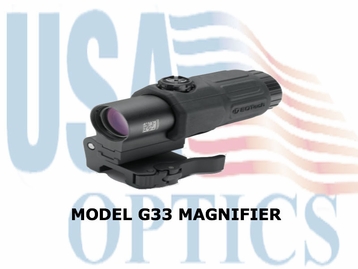

G33.STS Magnifier
The new G33.STS magnifier is shorter and lighter than previous models. The improved mount provides faster transitioning from 3X to 1X. The G33 offers tool free azimuth adjustment, a larger field-of-view and an adjustable diopter for improved, precise focusing.
Compatible with all EOTech Holographic Weapon Sights.


Specifications

Length/Width/Height - 3.9" x 2.2" x 3.3" (99 x 55.9 x 83.9 mm)

Weight - 11.2 oz (317.5 g)

Water Resistant - Submersible to 33 ft (10 m) depth

Mount - MIL-STD-1913 rail 1" Weaver

Fixed Magnification - 3X

Eye Relief - 2.2" (55.8 mm)

Field of View 7.3 degrees

Sealing - Fog resistant internal optics
